Understanding UPVC window seal types proves essential for maintaining your home’s energy efficiency, weather protection, and long-term comfort. Modern UPVC windows incorporate multiple sealing systems working together to create an effective barrier against draughts, moisture, and heat loss. When these seals deteriorate, the consequences extend far beyond minor discomfort – failed seals can increase heating costs by 15-25% whilst creating conditions for condensation and mould growth.
Primary UPVC Window Seal Systems

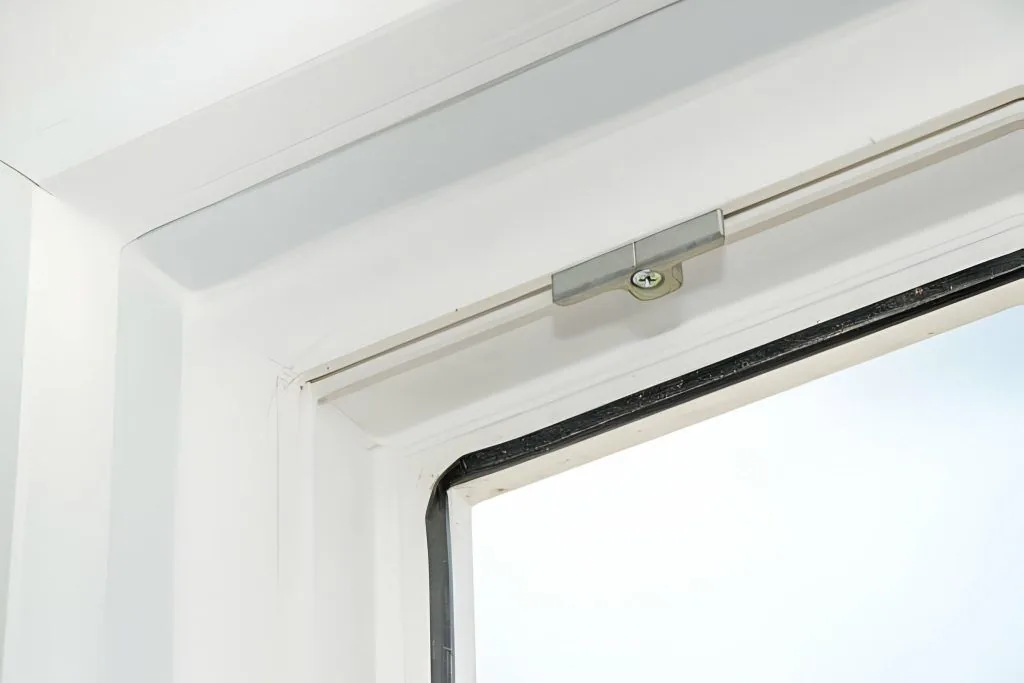

Weather Seals (Perimeter Seals) Weather seals form the primary defence against external elements. These rubber seals sit within grooves around the window frame perimeter, creating compression seals when the window closes. Quality weather seals use EPDM (ethylene propylene diene monomer) rubber that maintains flexibility across temperature extremes whilst resisting UV degradation and ozone damage.
Different UPVC window seal types serve specific functions within this system. Bubble seals, characterised by their inflated appearance, provide excellent compression whilst accommodating slight frame irregularities. Flipper seals offer superior weatherproofing for exposed locations but require precise frame tolerances for optimal performance.
Glazing Seals Glazing seals secure glass units within UPVC frames whilst providing weatherproofing around the glazed area. These seals typically use structural glazing tape or wet-applied sealants that cure to form permanent weather barriers. Quality glazing seals prevent water ingress whilst accommodating thermal movement of glass and frame materials.
Internal glazing seals work alongside external weatherproofing to create dual-barrier protection. This system prevents moisture penetration even if external seals develop minor deterioration.
Gasket Systems Window gaskets provide additional sealing around opening sections, particularly important for tilt-and-turn windows with complex opening mechanisms. These specialised UPVC window seal types must accommodate multiple movement patterns whilst maintaining weatherproofing integrity.
Co-extruded gaskets, manufactured simultaneously with frame profiles, offer superior longevity compared to retrofit alternatives. These integrated seals eliminate potential separation points that compromise weatherproofing effectiveness.
Identifying Your Current Seal Types
Visual Assessment Techniques Examine your windows using proper lighting and magnification. Different UPVC window seal types exhibit distinct characteristics that help identify replacement requirements. Clean window frames thoroughly before assessment to distinguish between dirt accumulation and seal deterioration.
Equipment Needed:
- Digital camera with macro function for documentation
- Measuring calipers for precise seal dimensions
- Torch for examining seal grooves
- Small mirror for inspecting hard-to-reach areas
- Notepad for recording seal profiles and conditions
Bubble Seal Identification Bubble seals appear as inflated tubes running around frame perimeters. Healthy bubble seals maintain uniform inflation and flexibility. Deteriorated examples show flattening, cracking, or hardening that reduces sealing effectiveness.
Flipper Seal Recognition Flipper seals feature flat profiles with angled edges that deflect wind and rain. These seals typically measure 3-5mm thick with precise profiles that match frame groove dimensions. Worn flipper seals lose their crisp edges and may develop tears or permanent deformation.
Wedge Gasket Systems Wedge gaskets use triangular profiles that compress into frame grooves. These UPVC window seal types provide excellent sealing pressure but require accurate frame tolerances. Identify wedge gaskets by their distinctive angular cross-sections and firm compression characteristics.
Assessing Seal Condition and Performance
Compression Testing Test seal compression by gently pressing along seal lengths. Healthy seals recover quickly from compression whilst deteriorated seals remain indented or feel excessively hard. This simple assessment reveals seal elasticity and remaining service life.
Draught Detection Methods Use incense sticks or tissue paper to detect air movement around window perimeters. Hold these indicators near suspect seal areas during windy conditions – movement indicates compromised sealing requiring attention.
Water Ingress Evaluation During heavy rainfall, inspect window frames for water penetration signs. Fresh water marks, damp patches, or actual dripping indicate seal failure requiring immediate attention. Document problem areas for professional assessment.
Manageable Seal Maintenance Tasks
Cleaning and Lubrication Regular cleaning extends seal life significantly. Use mild soapy water to remove dirt and debris from seals and frame grooves. Avoid harsh chemicals that accelerate rubber deterioration. Apply silicone spray lubricant to moving seals quarterly to maintain flexibility and prevent sticking.
Minor Adjustment Procedures Some UPVC window seal types allow minor adjustments to improve compression. Window handles often include adjustment mechanisms that increase seal pressure. However, attempt adjustments cautiously – excessive pressure can damage seals or frame components.
Temporary Weatherproofing For emergency situations, temporary weatherproofing using appropriate tapes or sealants can provide short-term protection. These measures should never replace proper seal replacement but can prevent further damage during adverse conditions.
Professional Replacement Requirements
Seal Profile Matching Replacing UPVC window seal types requires precise profile matching to ensure proper function. Professional installers maintain extensive seal libraries and measuring equipment to identify correct replacements. Incorrect seals compromise weatherproofing and may damage frame components.
Glazing Seal Replacement Glazing seal replacement typically requires glass unit removal and reinstallation. This process demands specialist knowledge of glazing techniques, safety procedures, and building regulations compliance. Improper glazing seal installation can cause glass unit failure or structural damage.
Frame Modification Requirements Some seal replacements require frame modifications to accommodate different seal profiles. This work involves precision routing or machining that requires professional tools and expertise. DIY attempts risk irreversible frame damage.
Building Regulations and Insurance Considerations
Modern UPVC window seal types must satisfy specific thermal performance standards under building regulations. Professional installers ensure compliance whilst maintaining structural integrity and weather resistance. Self-installed seals might not meet regulatory requirements, potentially affecting property insurance and resale value.
Insurance policies often specify professional installation requirements for window modifications. Verify coverage implications before attempting seal replacements, particularly for properties with specific policy conditions.
Long-term Performance and Energy Benefits
Quality UPVC window seal types deliver substantial long-term benefits when properly maintained and professionally installed. Energy savings alone often justify professional maintenance costs, with effective sealing reducing heating bills by up to 20% annually.
Proper sealing also prevents condensation-related problems that can damage window frames, surrounding structures, and interior decorations. This protection preserves your property’s condition and market value.
Expert Assessment and Professional Solutions
Whether you’re maintaining existing seals or planning comprehensive window refurbishment, having expert guidance makes the difference. Our experienced team understands different UPVC window seal types and their specific applications for various window systems and climate conditions.
From technical advice for your maintenance projects to complete professional seal replacement with building regulations compliance, we provide comprehensive window sealing services. Our specialists handle everything from seal identification to custom profile matching that ensures optimal performance.
Don’t let deteriorated seals compromise your home’s comfort and efficiency. Contact our UPVC window experts today for consultations, professional quotes, or specialist advice on maintaining your window seal systems.
